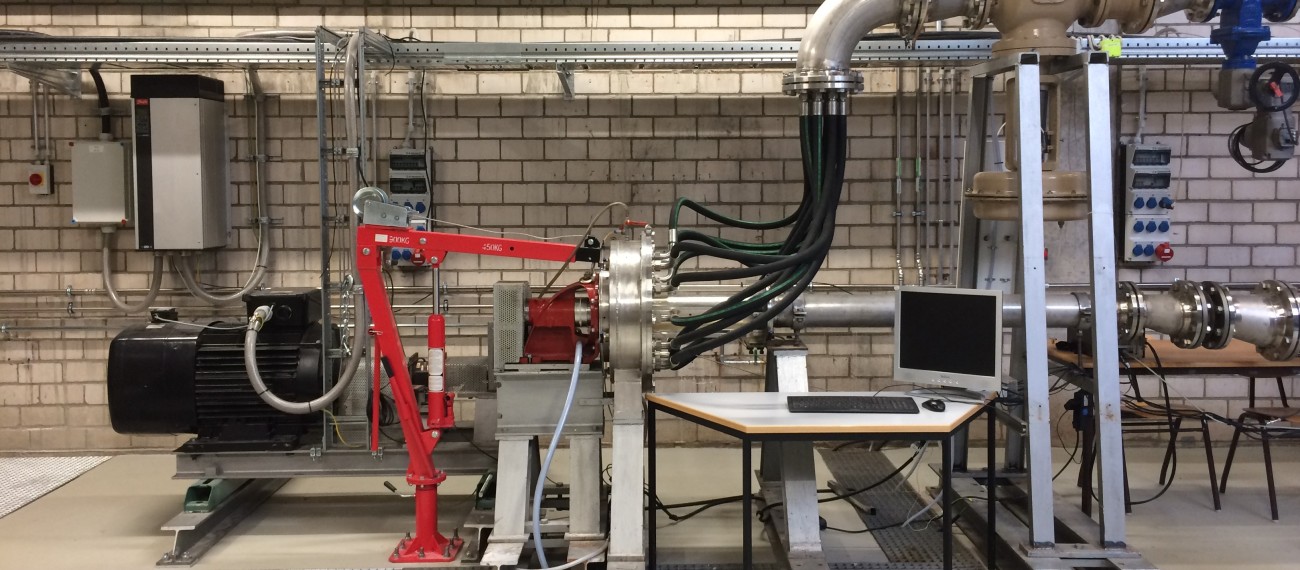

Radial pump test rig

Description

  • investigation of cavitation on radial pumps
  • impeller is visually accessible
  • impeller and blades are replaceable

methods

  • high speed visualisation
  • Particle Image Velocimetry
  • flow probes

specifications

  • rotational speed n = 26 min-1
  • volumetric flow rate 0…200 m³/h
  • head 0…30 m
