Boundary Layer Test Rig

Description

  • Open wind tunnel to investigate the boundary layer
  • Research on partial load recirculation in turbo engines by using a generic model
  • Research on active boundary layer excitation
  • High variability by exchanging the rotating core

Investigation methods

  • Laser Doppler Anemometry (LDA)
  • Pinhole orifice measurement for determining the volume flow
  • Inductive distance measurement

Technology

  • Coherent Genesis MX STM – 1 W Solid state laser
  • Maximum speed of the pipe 12500 rpm
  • Maximum flow speed 41 m/s
  • Maximum volume flow 0.08 m³/s
Schematic structure of the test rig
Schematic structure of the test rig

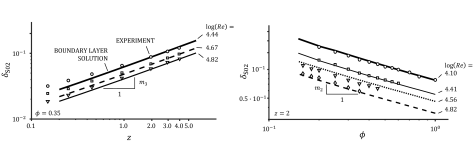

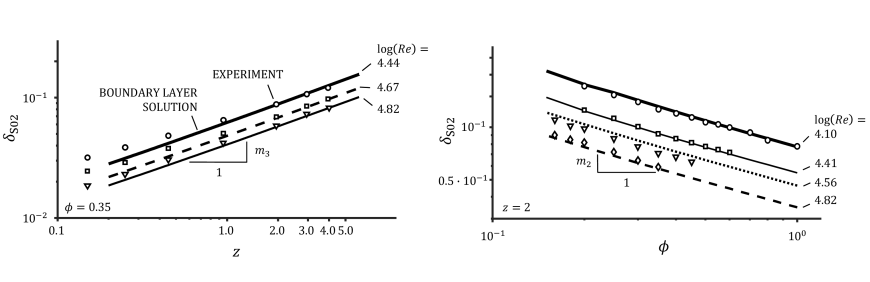

Swirl boundary layer thickness over the axial coordinate (left) and the flow number (right)
Swirl boundary layer thickness over the axial coordinate (left) and the flow number (right)
